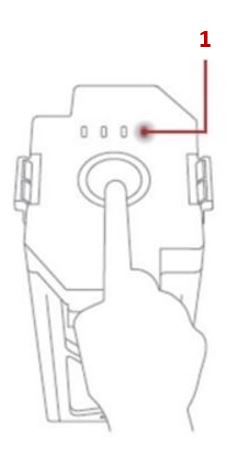

Aircraft Battery


Check the battery indicator.

Press the button battery of battery; the illuminated lights indicate the remaining battery.


1. Each light indicates 25% battery


Standard Controller



30% or above
10%-30%
less than 10%


1. Check the battery indicator


or

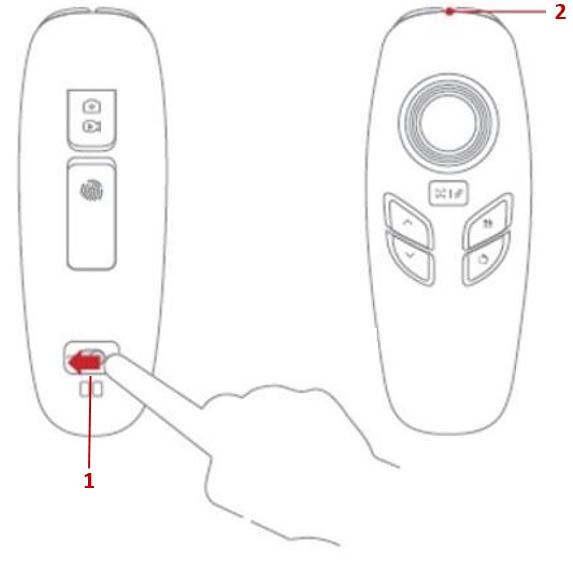

Maestro™ Controller



30% or above
10%-30%
less than 10%


1. Switch on the controller
2. Check the battery indicator




Base Station

30% or above
10%-30%
less than 10%


1. Hold the power switch button

2. Check the battery indicator



The connection for charging


1. Aircraft Battery

can take ~2.5 hours

to fully charge

2. Standard Battery

can take ~3.5 hours

to fully charge

3. Maestro™Battery

can take ~2 hours

to fully charge

4. Base Station Battery

can take ~5 hours

to fully charge
